Description

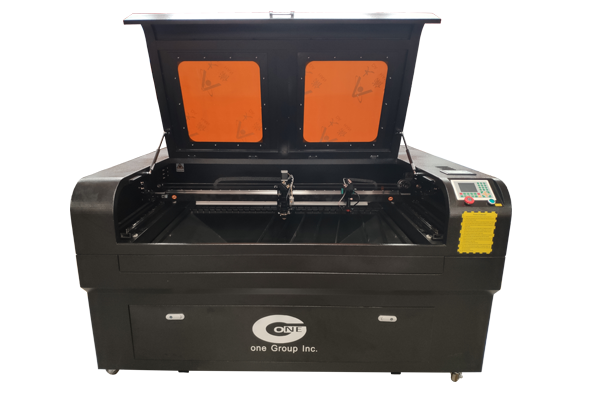

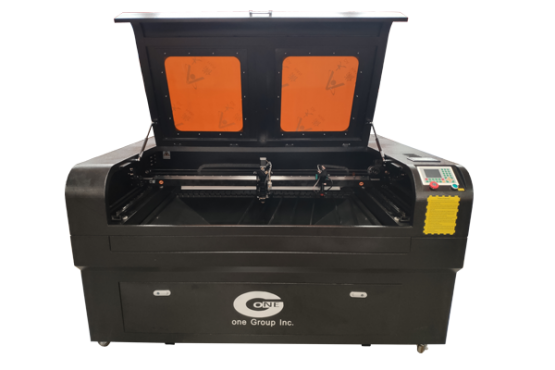

DBL-1390D Mixed Co2 Laser Cutting Machine
If you want to cut the metal 1to1.5mm, please choose DBL1390 Metal and nonmetal laser cutting and engraving machine.
Machine working size is:1300x900mm. if you want to cut wood for example : MDF rose wood,
wood baord, beach wood and other hard wood, please using theW2 RECI, 90w laser tube, can cut this materials wood: 5-8mm very well.
If you want to cut the die board; 15to18mm please choose the machine : 1300x900mm working size with 130w laser tube, it can cut the die board very well .
If you want to cut the acylic 20mmto25mm, please choose the 130w RECI tube. can cut it well.
If you have other questions or need to know more exactly information about the machine ,please send me a letter from alibaba , I will reply you within 10 minutes as soon as possible.
Machine models DBL-1390
Max working area 1300*900mm
Laser tube watts 60-180W
Laser tube type Co2 sealed laser tube 150Watt&60watt

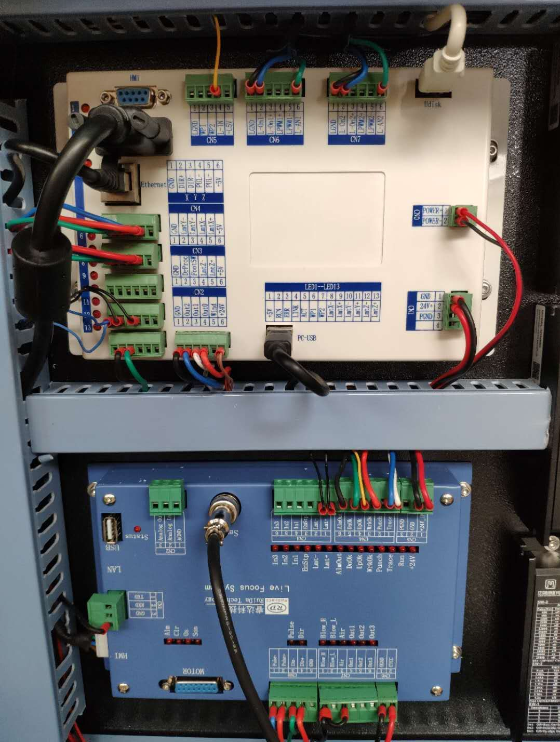

Control system Ruida 6332M
Compatible software Coreldraw, Autocad, Photoshop
Graphic format BMP, PLT, DST, AI,DXF
Resolution 500dpi
Resolution rate 0.05mm
Minimum character English 1*1mm
Electrical requirments AC110-220V
Speed and power control Computer or manually controlled speed, max up to 800mm/s, and power in 10% increments to 100%
Print interface Enthernet or USB interface. Compatible with Windows 10/8/7/XP,
Note: 1. Machine color and size can be customized.
2. Warranty: 2 years for machine body, 12 months for RECI laser tube.
Applicable Materials
____________________________________________________________________________________
wood, bamboo, jade, marble , organic glass ,crystal, plastic, garments , paper, leather, penelope, rubber, ceramic, glass and other nonmetal materials .
Applicable Industry
advertisement, arts and crafts, leather, toys, garments,model, building upholster, computerized embroidery and clipping, packaging and paper industry
After sale service
____________________________________________________________________________________
1. Warranty
Three years warranty for machine, two years for domestic source (three year for IPG source)
2. Technical support
Lifelong technical support online or by email and 18 hours online service to help you use our machine well.
3. Oversea service
Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets and engineer charges USD200/day)
4. Tranining service
Offer training at our factory for free (you could visit us and learn)
Pre-sale service:
1. Free sample making:
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample shipping back cost should be paid by purchaser.
2. Progressing Solution Design:
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
